Earth Leakage Circuit Breakers (Residual Current Circuit Breaker, RCCD)

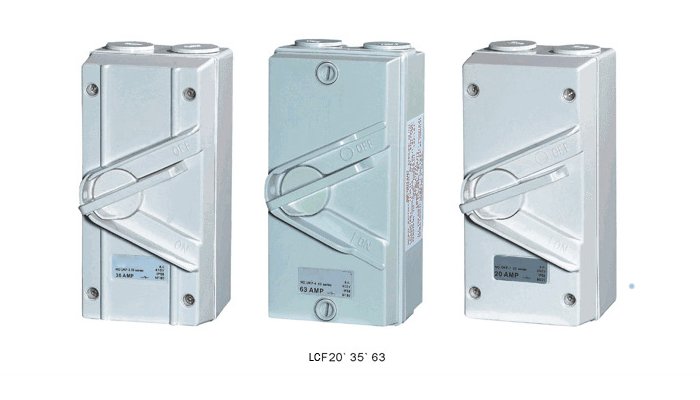

AWWH series weather protected isolating switches
WEATHER PROTECTED
The AWWH series weather protected isolating switches is a robust range of switches suitable for virtually any external application included in the range are single, double and triple pole switches from 20 to 80 Amps. the base mounted mechnaism provides for easier termination and more wiring room. Switch dimensions are 165mm x 82mm with an overall height of 85mm.
ISOLATING SWITCHES
Fixed earth and natural connector bars with dual clamping screw per tunnel provide equal stripping lengths and secure clamping for all cables. Terminal bore size 5x6.6mm. A safety feature for mounting switches to metal structure is the insulating cape that cover base mounting screws to totally protect them from any live cables.

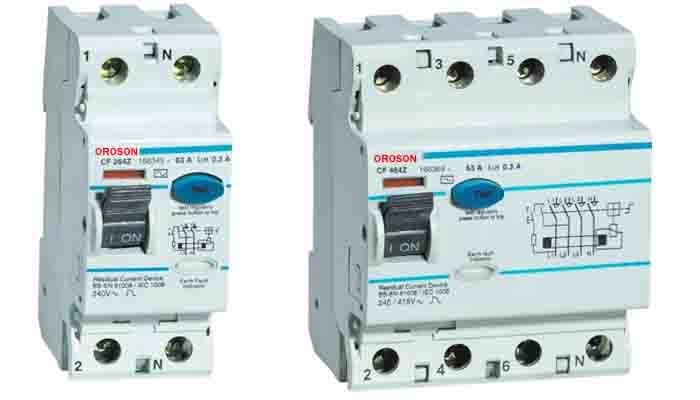

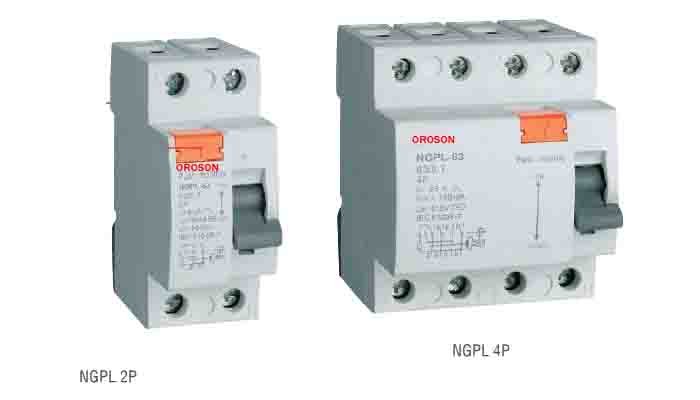

Residual Current Circuit Breaker
The item is in accordance with standards of IEC1008, VDE 0664, CEE27 and BS 4293 etc. Applying to the circuit of Ac 50/60H, 240V single phase, 415 three phases and below it for industrial and mining enterprise, trade building, commerce and family.

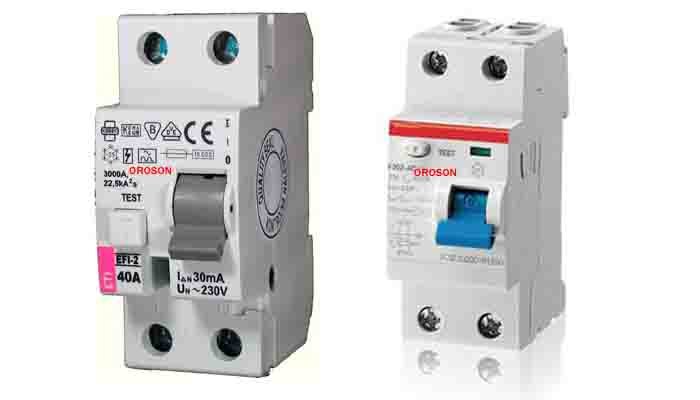

Residual Current Circuit Breaker
The residual Current Device (RCD) AWL6 is in conformity with the standards of IEC 1008, VDE 0664, CEE27 and BS 4293. It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunk line.

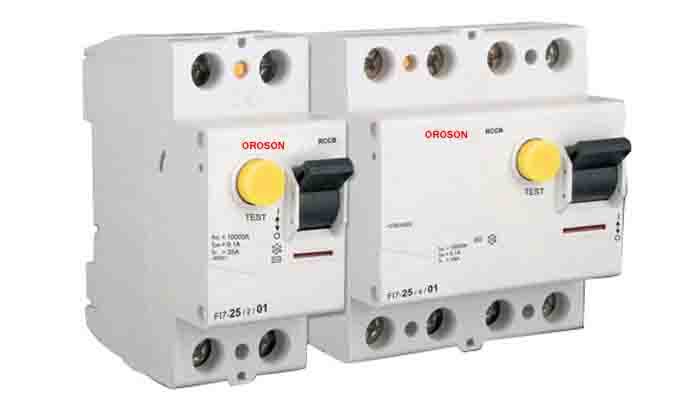

Residual Current Circuit Breaker
The Residual current device RCD AWL5 in in conformity with the standards of IEC 1008, VDE 0664, CEE27 and BS 4293. It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunk line. Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.

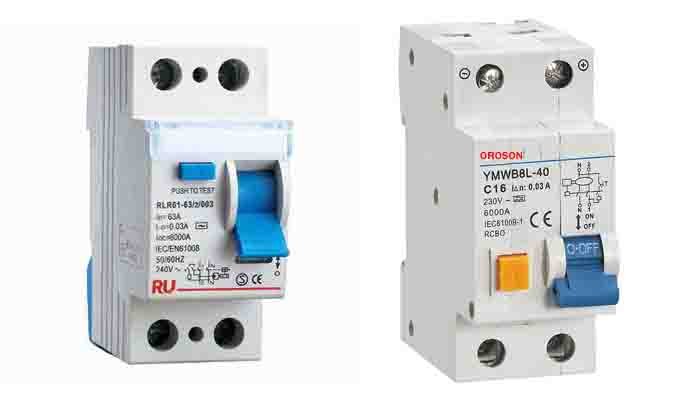

Residual Current Circuit Breaker
The AWL18 RCCB's residual current device provide the function of isolation, Switching and earth leakage protection of electrical circuits.

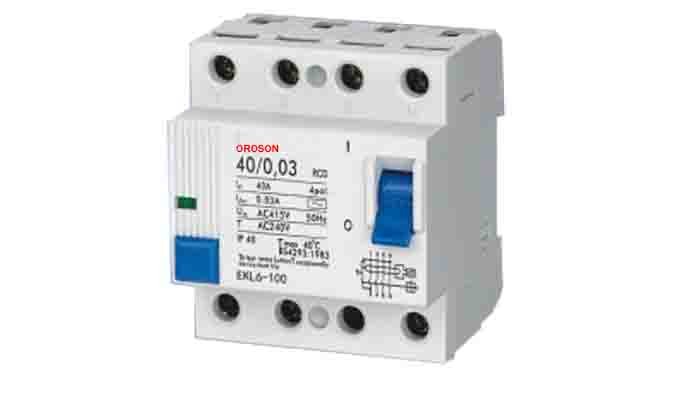

Residual Current Circuit Breaker
The AWL18 RCCB's residual current device provide the function of isolation, Switching and earth leakage protection of electrical circuits.

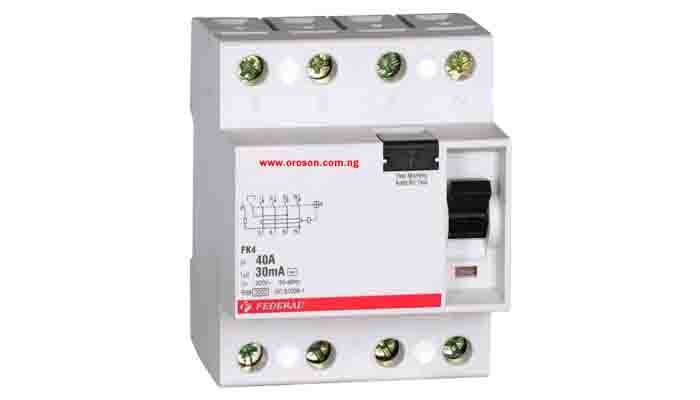

Residual Current Circuit Breaker
The AWL18 RCCB's residual current device provide the function of isolation, Switching and earth leakage protection of electrical circuits.

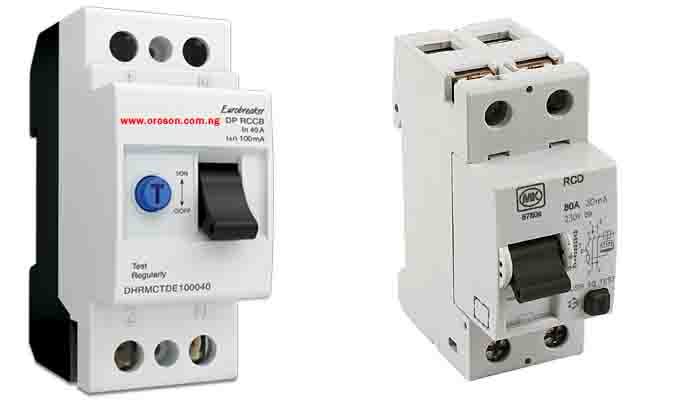

Residual Current Circuit Breaker (RCCB)
Dimensions: To open a circuit automatically in the case of an earth leakage fault between phase and earth and neutural geater or equal to 10mA, 30mA, 100mA, 300mA or 500mA. It is used in domestic, commercial and industrial installations.
Residual Current Circuit Breaker(Earth Fault Indicator)
Mechanical indicator appearing on the front face of the RCCB is to be differed between tripping and off position yellow-triped.

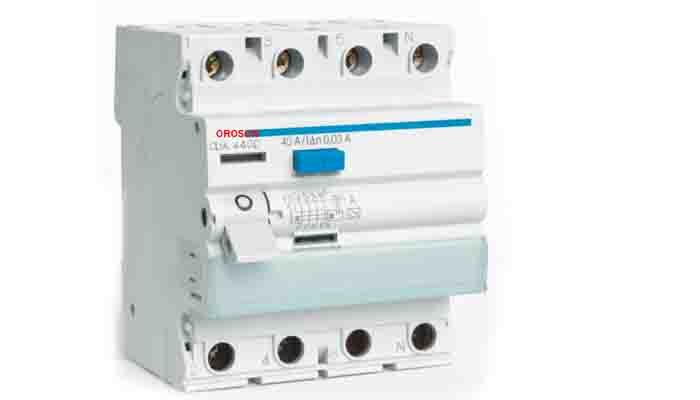

Residual Current Circuit Breaker
All the RCCBs are protected against transient voltages (lightning, line distrubances) and transient currents (from high capacity circuits) DC sensitive RCCD or time delay devices are available, please consult us you also have the possibility to install the following accessories; locking kit.
