Power Quality and Energy
Power Quality and Energy

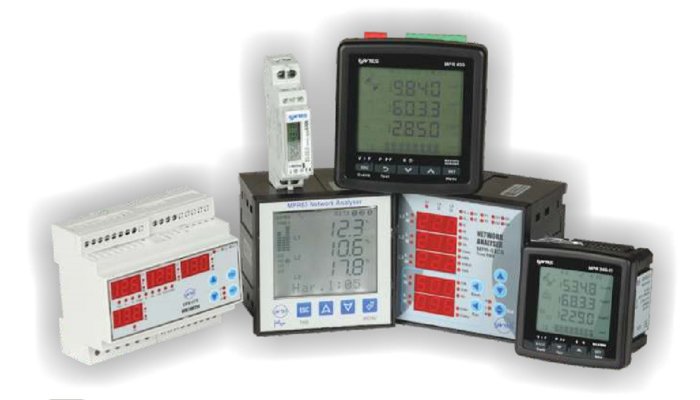

The products in ''ENTES Power Quality and Energy'' group are designed to measure various electrical parameters. With their communication features all measurements can be tracked from a single monitoring center. Energy quality and efficiency analysis can be performed with network analyzers in electrical distribution/transmission systems, such as industrial facilities and buildings.
Network Analyzers (LCD) MPR-3 Series (72x72)
MPR-3 Series New Generation Mini Network Analyzers
With 72x72x50mm size, MPR-3 series mini network analyzers occupy smaller space. These analyzers are preferred in Rack type panels due to their compact design and used in applications such as UPS, machine control panels, data processing and system rooms and security control. MPR-3 series can detect the status and enable the control of the devices (breakers, keys, switches etc.) in the field with their digital inputs and outputs.
Network Analyzers (LCD) MPR-4 Series (96x96)

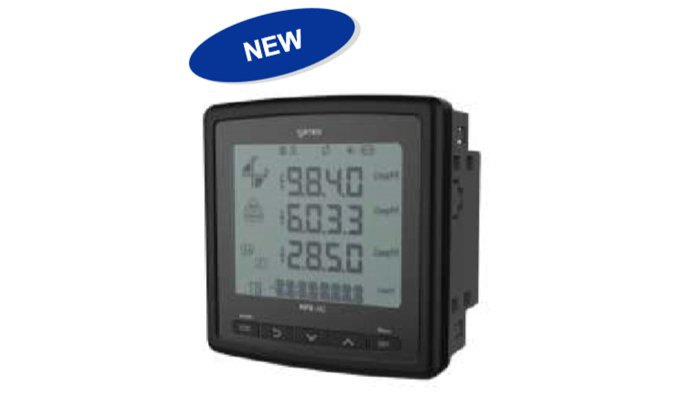

MPR-4 Series New-Generation Network Analyzers
With their compact design and 45mm depth, MPR-4 series new generation network analyzers occupy less space in the panels and have a wide range of operating voltage (45-265 VAC/DC). In addition up to 16 MB internal memory, they offer wide I/O solutions with their replaceable modular structure based on customer requirements and areas of application. MPR-4 Series offer a wide range of analog and digital inputs/outputs and relay outputs with their I/O modules .

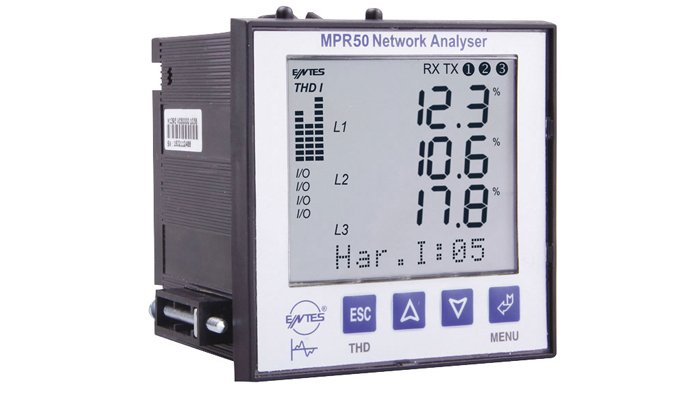

Network Analyzers ENTES MPR-50 MPR-52S MPR-63S MPR
Power and Energy Measuring for all Series
MPR-50: Network Analyser MPR-52S-10: Network Analyser with THD Measurement RS-485 (MODBUS) and Alarm Contact MPR-60S: Network Analyser with THD Measurement RS-485 (MODBUS), Alarm Contact and 1MB Memory MPR-63: Network Analyser with THD, up to 31st Harmonics Measurement, RS-485 (MODBUS), Alarm Contact and 1MB Memor.

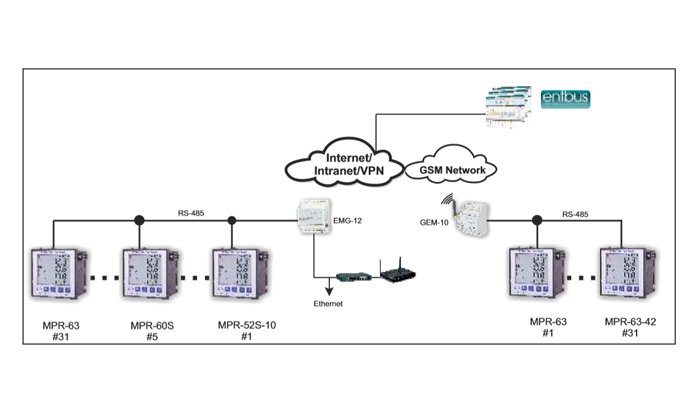

Network Analyzer Diagram MPR-52S / MPR-60S / MPR-63
Remote Monitoring Software:
With the energy management software developed by ENTES, energy consumption and quality can be monitored in real time by reading the values measured by devices. As a result, comprehensive energy monitoring, data storage, optimum energy consumption control with the analysis of stored data, improvements in energy costs, and sustainable goals for energy systems are accomplished.

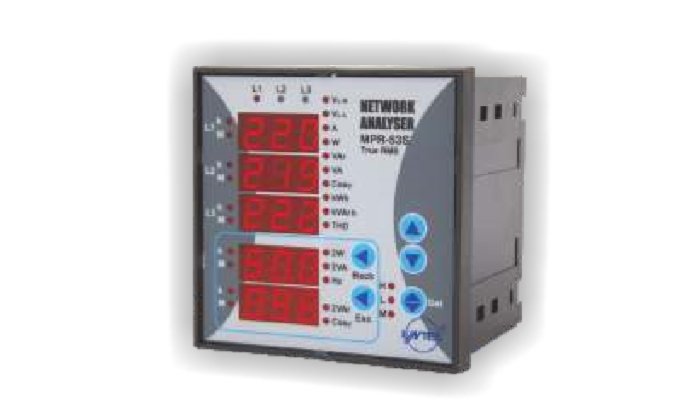

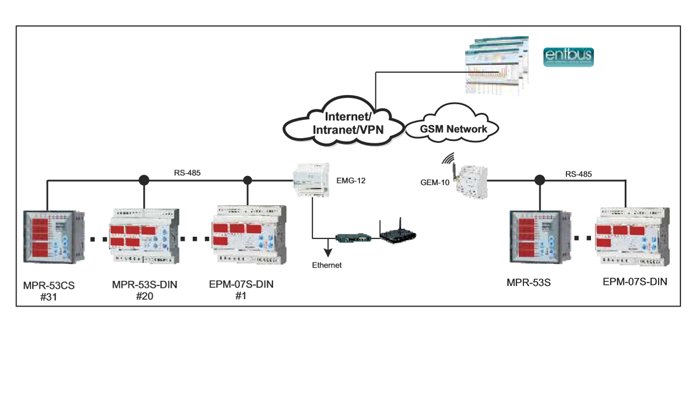

Network AnalyzersMPR-53 / EPM-07
MPR-53 / EPM-07 series network analyzers allow monitoring more than 50 electrical parameters on their display EPM-07 : Network Analyzer EPM-07S : Network Analyzer with RS-485 (MODBUS) MPR-53 : Network Analyzer with THD measurement MPR-53S : Network Analyzer with THD measurement and RS-485 (MODBUS) MPR-53CS : Network Analyzer with THD measurement , RS-485, Pulse Counter, Digital Hour Meter, Alarm Contact.

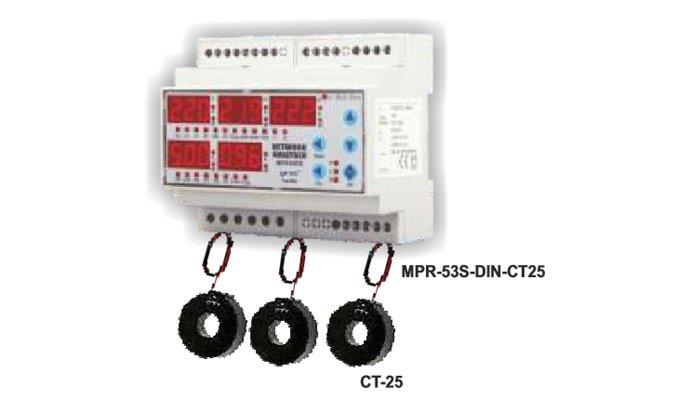

MPR-53S-DIN-CT25
Remote Monitoring Software:
With the energy management software developed by ENTES, energy consumption and quality can be monitored in real time by reading the values measured by devices. As a result, comprehensive energy monitoring, data storage, optimum energy consumption control with the analysis of stored data, improvements in energy costs, and sustainable goals for energy systems are accomplished.
Power & Energy Meters EPR Series / ES Series Connection Diagram (PR19- 96x96mm)
AWQ8-D series star delta reduced voltage starter is suitable for starting motor in the circuit of AC 50/60Hz, voltage up to 660V and current up to 95A. It is provided with a timer for automatic changeover of star-delta to reduce the voltage and current of motor starting.
Power and Energy Meters EPR Series / ES Series
EPR-04: Digital Power and Energy Meter EPR-04 has been designed to measure power and energy values.
EPR-04S: Digital Power and Energy Meter with RS-485 EPR-04S has RS-485 communication feature in addition to the features of EPR-04.
Power and Energy Meters EPR Series / ES Series
ES-32L / ES-32LS / ES-80L : Watt-Hour Meter
ES series directly measure active watt-hour (kWh) consumption with their compact, reliable and simple installation features. ES-32L and ES-80L also have has energy pulse output.
ES-32LS: It communicates over the RS-485 port by storing energy measurements in the ModBus registers. ES-32 series have MID certificate which is accepted as a measurement standard in European countries.
