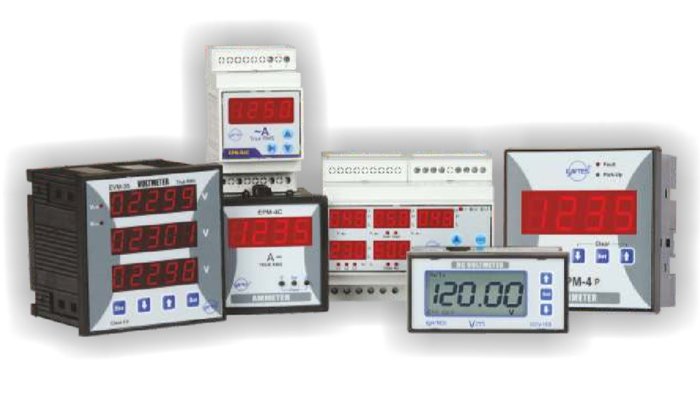

Electrical Measurement

The products in ENTES Measurement group are designed to perform analysis for the efficient use of energy by measuring electrical parameters. Multimeters, Ammeters, Voltmeters, Cos Meters, Frequency Meters, Transducers and DC  Ammeters / Voltmeters offer solutions with broad measurement ranges and support different application types. With the optional communication feature (RS-485), all measured data can be monitored remotely.

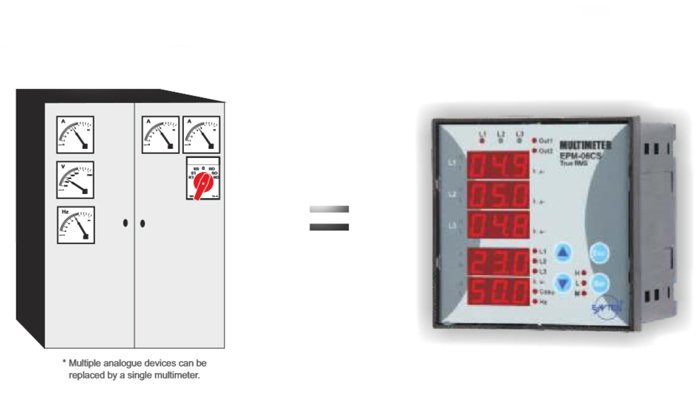

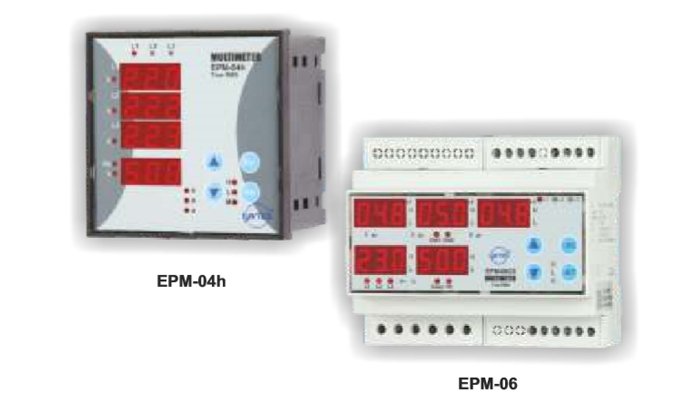

Multimeters EPM-04 / EPM-06 / EVM-05

Password security Operating hourmeter (resettable) and total operating hourmeter (not resettable) (for EPM-04h). EPM-04h is for generator applications.

Multimeters EPM-04 / EPM-06 / EVM-05

Password security Operating hourmeter (resettable) and total operating hourmeter (not resettable) (for EPM-04h). EPM-04h is for generator applications.

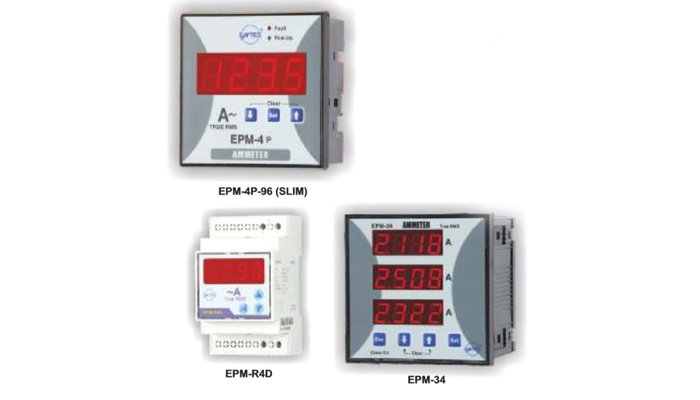

Ammeters EPM / EPM-R Series

True RMS Measurement
Adjustable Current Transformer Ratio
(for EPM34/14 1...1000/5A 1...5000/1A)
Double Isolation ( ), Category III.
Front Panel or Rail Mounting
Operating Temperature: -5 C / +50 C, 0 0-5 C,+70 C (for EPM14/34)

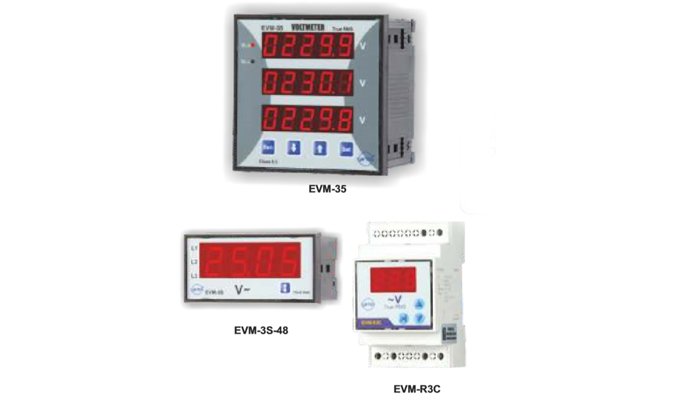

Voltmeters EVM / EVM-R Series

24 `250 VAC/DC (for EVM-35/15)
Measurement Range with Transformer 1-40 kV (for EVM-35/15)
Class 0,5 (for EVM-35/15)
IP54 (for EVM-35/15)
True RMS Measurement
Double Insulation ( ),
Measurement Category III
Operating Temperature : -5 C / +50 C, 0 0-5 C,+70 C (for EVM15/35).

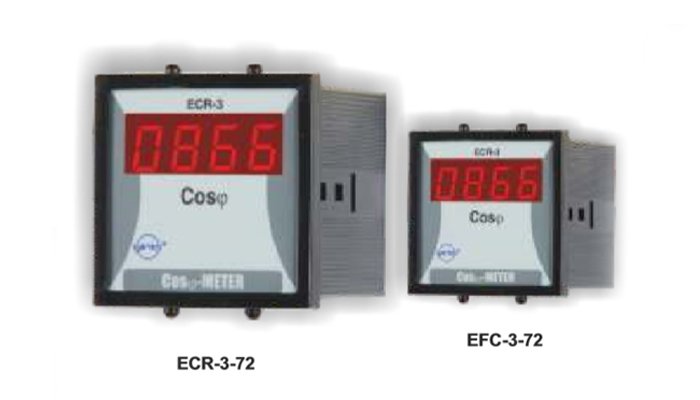

Frequencymeter / Cos meter

ECR-3 Cosmeter measures Cos of the energy received from the network. It also indicates whether the operating load is inductive or capacitive.
EFC-3 Frequency meter sensitively measures the frequency of the operating voltage at industrial sites.
Double Insulation ( )
Measurement Category III
IP 40 (Front Panel)

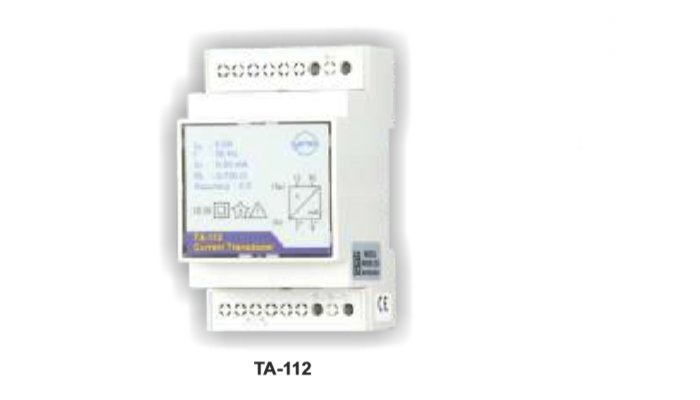

Current Transducer TA Series

Transducers convert the electrical signals reaching their inputs into analog signals, and mainly They are used in automation systems.
TA-111 and TA-112 current transducers are input-supplied. No additional supply voltage is applied. Output signal is 0-20mA. The transformer used in the input circuit of TA-111 and TA-112 current transducers provides galvanic isolation between input and output signals.

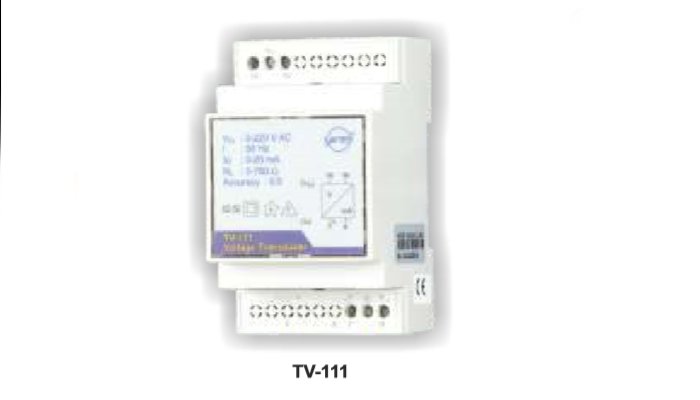

Voltage Transducer

Transducers convert the electrical signals into analog signals , and mainly used in automation systems.
TV-111 voltage transducers are input-supplied. No additional supply voltage is applied. Output signal is 0-20mA. The transformer used in the input circuit of TV-111 voltage transducers provides galvanic isolation between input and output signals.

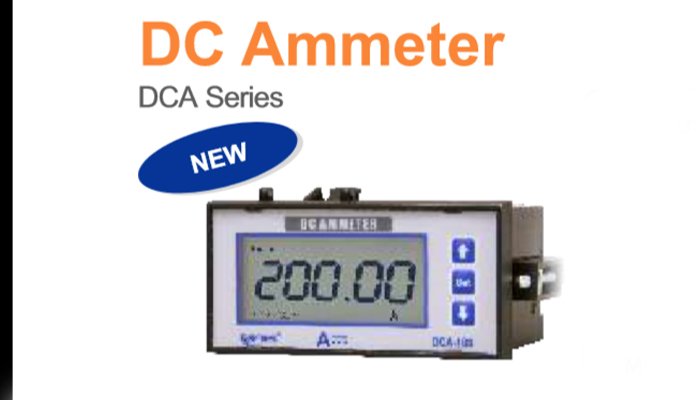

DC Ammeter DCA Series

Features;
1. Current is measured via an externally connected shunt resistance.
2. Wide supply voltage range, 85-265 VAC/DC (DCA-10), 10-56 VDC (DCA-11) .
3. Communication with the MODBUS RTU protocol over the RS-485 line.
4. Saves maximum and minimum values,
5. Easy access to the settings with the backlit LCD display
6. Measurement period adjustable between 1 to 600 seconds.

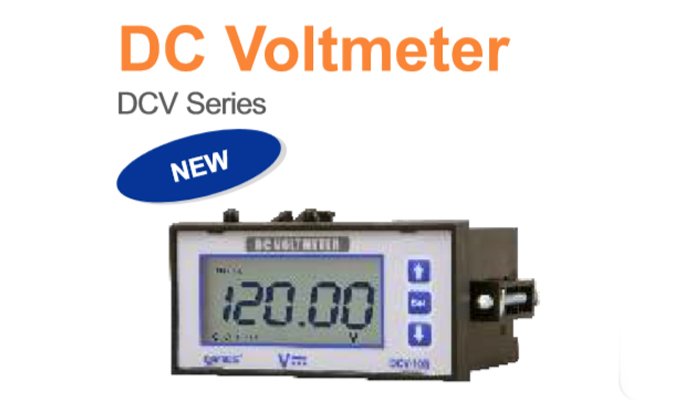

DC Voltmeter DCV Series

The device has been designed to measure the voltage of a DC system.
1. Wide supply range, 85-265 VAC/DC(DCV-10),10-56 VAC (DCV-11)
2. Communication with MODBUS RTU protocol over RS485 line
3. Saves maximum and minimum values
4. Easy access to settings and best view under any lighting condition with the help of backlit LCD screen
5. Adjustable measurement period between 1 and 600 seconds
