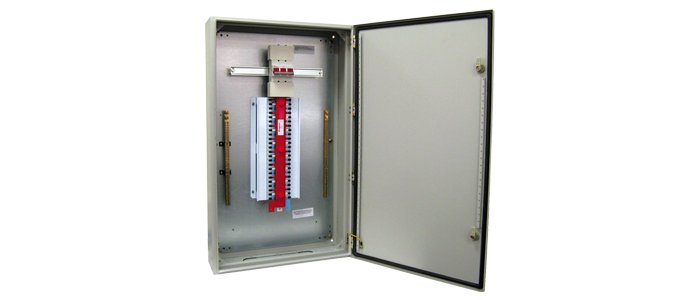

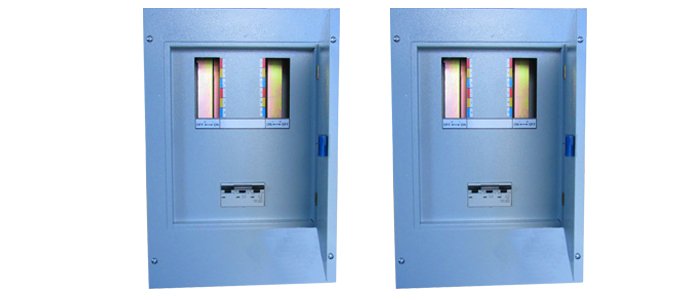

Application:
With generous wiring space, full size earth and neutral bars and 2 IP ratings, these robust Distribution Boards make setting-up a system easy work.
24, 36, 48, 60, 72 and 84 pole options
Fully welded construction - full width removable gland plate
2 finishes: Grey RAL 7035 and Orange RAL2000
Chassis: 250A, 25 kA/0.1s withstand capacity
Option for 400A chassis and split chassis distribution boards available upon request
Technical Data
24 to 84 pole
Fitted with 250 A chassis 25 kA/0.1s
Ample space for wiring
Full size Earth & Neutral bars fitted
Top Din knock-out facility (20 module wide)
Circuit identification and schedule cards provided
Available with 250 A Main switch
Panel board depth 200mm
View Project

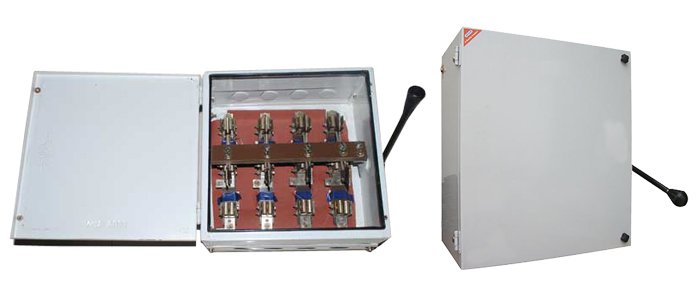

1.GZ-100/4 Change over switch
2.Volt:230-690V
3.Rated current:100A
4.Motor control capacity:30KW
5.OEM,ODM
GZ-100/4 Change over switch
Application:
GZ Series Cam starter is mainly used start, stop, forward or backward directly there-phase asynchronous electric motor with AC 50Hz, voltage 230V to 690V . It can also be used for changeover from one kind of circuit to the other.
Specifications

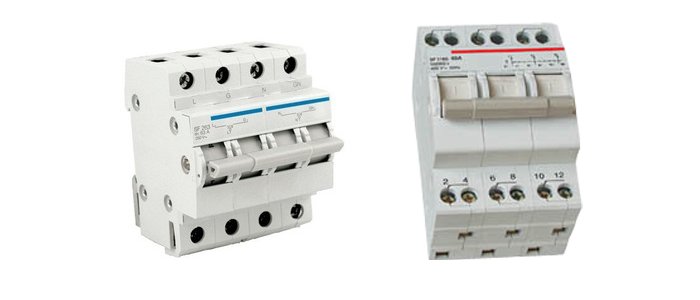

SF Change Over Switch
1,IEC/EN 60898, IEC60947, GB10963
2. SF Change over switch
3. 1P,2P,3P
4. Professional of Circuit
SF Change Over Switch
1,IEC/EN 60898, IEC60947, GB10963
2. SF Change over switch
3. 1P,2P,3P
4. Professional of Circuit Breaker
SF Change over Switch
Number of Poles:1p,2p,3p,4p
Rated Current:10A,16A,20A,25A,32A,40A,63A,80A,100A
Rated Voltage:250V/415V
