Distribution Board

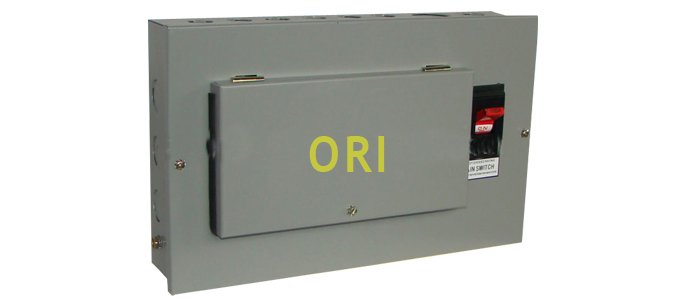

Din Rail Type Flush or Surface electrical single phase 8ways distribution board

Product Description

Application:

   This distribution system is suitable for circuit of AC50/60 Hz,rated voltage up to AC660V,rated current up to 125A of distributing control of modern building such as large office mansion, hotel, commerce department industrial and mining enterprises and so on. It can protect electric appliances from overload voltage & current. It also can short and frequent switch ON/OFF under normal operating condition.the distribution board  can be use put the mccb and put the mcb.

Features:
1.AC50/ 60Hz circuits.
2.Rated voltage up to 415V.
3.Rated current up to 125A.
4.One main switch, MCBs mounted, or with a leakage switch.
5.Flush and surface mounting, single (4 - 12 ways) and three-phase (4 - 12 ways) available.
6.indoor/outdoor usage.
7.materials: cold roll sheet steel or stainless steel, 0.6/ 0.8/ 1.0mm thickness.
8.Finish: plastic powder coating metal enclosure.

View Project

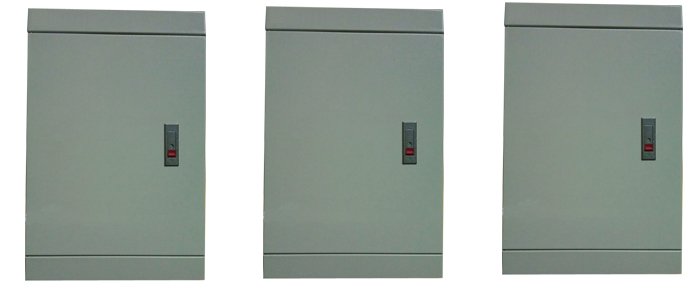

AW single phase 6ways distribution board/ distribution box

Specifications

1. new type of ready board
2. Short delivery time
3. Competitive price
4. Logo printing as your request
Advantages:
1.Easy identification
2.Easy opening
3.Easy wiring
4.Easy adjustment
5.Long life for usin



View Project

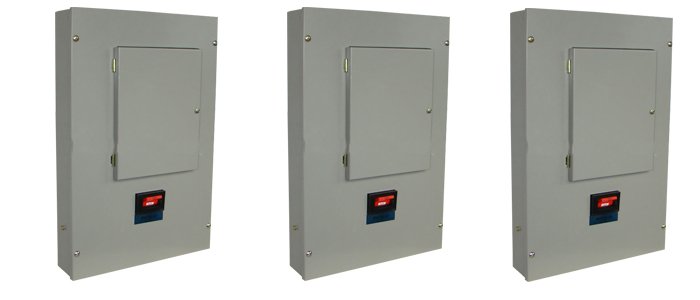

MCB three phase 6ways distribution board

Product Description

Features:
1.AC50/ 60Hz circuits.
2.Rated voltage up to 415V.
3.Rated current up to 125A.
4.One main switch, MCBs mounted, or with a leakage switch.
5.Flush and surface mounting, single (4 - 12 ways) and three-phase (4 - 12 ways) available.
6.indoor/outdoor usage.
7.materials: cold roll sheet steel or stainless steel, 0.6/ 0.8/ 1.0mm thickness.
8.Finish: plastic powder coating metal enclosure.

   The distribution board is applied to the terminal protection protection distribution board. The main switch is 100A-2P 100A-3P disconnector switch. The brach switch is miniature circuit breaker. The distribution board has the function of delay and instantaneous overload protection.

   The distribution box is made out of high quality galvanized steel sheet of up to 0.6-1.2mm thickness. Series of type panel board in good quality and competitive price.

View Project

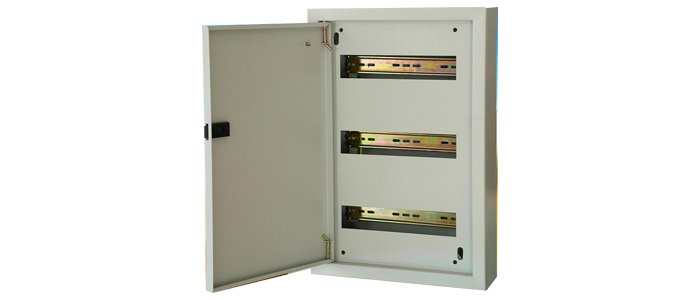

New_type_of_distribution_board_distribution_box

New type of distribution board / distribution box / lighting distribution board

Features

100% product quality protection

View Project

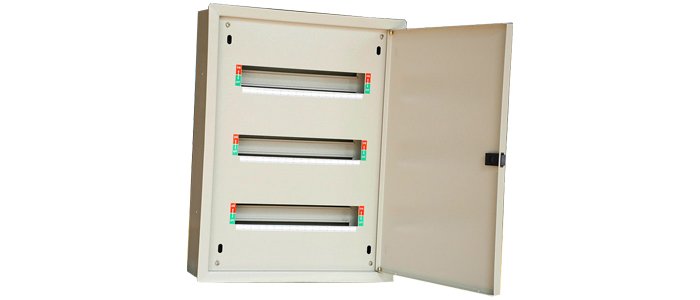

New type of distribution board / distribution box / lighting distribution board

Features

100% product quality protection
